Axen™ AX1 Portable Single Gas Monitor and T-Dock™

Robust, Reliable, and Flexible

Protect workers in hazardous environments with the Axen AX1. The Axen AX1 is a compact, lightweight, and robust Portable Single Gas Monitor with rapid sensor response time so workers can better take action during dangerous situations.  And the available T-Dock™ accessory offers automated management and ultra-fast bump testing for eight instruments simultaneously.

Axen AX1 is only available in the United States, Canada, and Latin America excluding Brazil. For all other regions, click here.

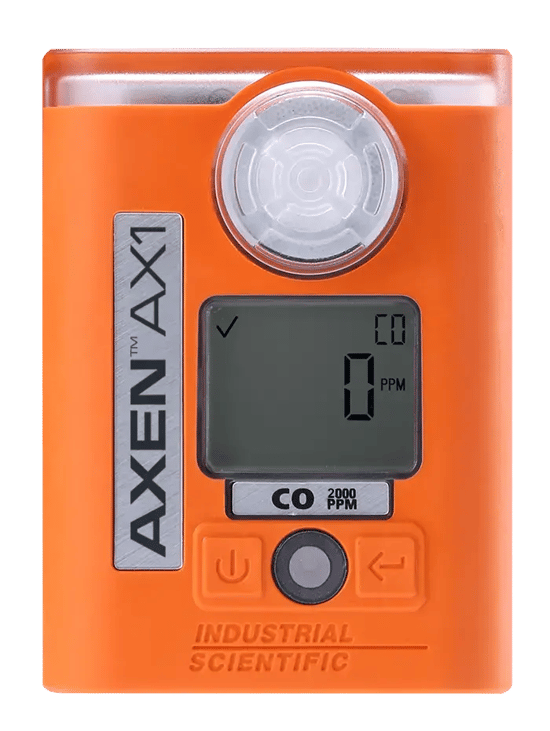

Axen-AX1_Orange-CO

How the Axen AX1 Works

Trust the gas monitor that understands the importance of time and accuracy in dangerous situations. The Axen AX1 has a sub 10s T90 sensor response time that informs workers immediately if hazards arise.

alarm

Sub 10s T90 sensor response to better inform team of hazards.

ribbon-badge

Endure the harshest conditions thanks to an IP68 rating.

lighting

Get two-year run time with a replaceable battery that eliminates the need for a charging station.

Test Drive the Axen AX1 and T-Dock™

Axen-AX1_Orange-CO
Dust proof provides more reliability in hazardous environments

Small and lightweight allowing workers to comfortably wear all day long

T-Dock Left 8 Instruments

Maintain up to 8 instruments simultaneously.

Bump test Axen™ AX1 monitors in just 15 seconds.
No training needed -- simple interface is intuitive and one button starts all bump tests.
woman-gas-detector

Talk to one of our experts to learn if the Axen AX1 and T-Dock™ are right for you.

Talk to an Expert

Axen AX1 and T-Dock™ Documents

Download up-to-date resources—including manuals, quick-start guides, specifications, and brochures—to optimize your Axen AX1 and T-Dock™ usage.

PDF

Axen AX1 Spec Sheet

Download
PDF

Axen AX1 Application Note

Download
PDF

T-Dock Spec Sheet

Download
PDF

Axen AX1 & T-Dock Brochure

Download

Axen AX1 Technical Specifications

Humidity Range

5% to 95% non-condensing

Temperature Range

-40 degrees C to 50 degrees C (-40 degrees F to 122 degrees F)

Sensors and Measuring Ranges
  • Carbon Monoxide (CO): 0 to 2000 ppm at 1 ppm resolution
  • Hydrogen sulfide (H2S): 0 to 500 ppm at 0.1 ppm resolution
  • Oxygen (O2): 0 to 30% volume at 0.1% volume resolution
Battery

3.6 V Primary Lithium-thionyl chloride (Li-SOCI2), 1.5AH, 2/3AA, replaceable
